Vanishing and Exploding Gradients

The 20-layer sigmoid network feeds a gradient that is 450 trillion times weaker than the last layer receives to the first layer. The network fails to learn. Vanishing and exploding gradients are failures in the training process of deep learning in which the gradients propagated backward become infinitesimally small or infinite as one proceeds from one layer to another, thus preventing learning in the early layers or leading the loss function to infinity. This article explains how to determine the failure a network experiences before implementing the appropriate remedy.

Vanishing and exploding gradients issue has been studied for the first time by Sepp Hochreiter in his diploma thesis of 1991 from Technical University of Munich. Later in 1994, Yoshua Bengio, Patrice Simard, and Paolo Frasconi described it in the case of recurrent networks. Among current solutions, ReLu activations, Xavier & He initialization, residual blocks, normalization layers, and LSTM are to be mentioned.

What Are Vanishing and Exploding Gradients?

Vanishing gradients occur where the gradients approach zero during backpropagation, whereas exploding gradients occur where the gradients increase exponentially to generate large weight updates. Both vanishing and exploding gradients arise due to the same phenomenon of repeated multiplication during backpropagation.

Attribute	Vanishing gradients	Exploding gradients
Gradient behavior	Shrinks toward 0	Grows toward infinity
Main cause	Per-layer factors below 1	Per-layer factors above 1
Typical trigger	Sigmoid or tanh saturation, small weights	Large weights, high learning rate
Loss symptom	Flat plateau early in training	Spikes, oscillation, NaN
Layers hit first	Early layers near the input	All layers, often suddenly
Common in	Deep MLPs, vanilla RNNs	RNNs, unnormalized deep nets
First fix to try	ReLU + He init, residual connections	Gradient clipping, lower learning rate

The Vanishing Gradient Problem

Vanishing gradients refer to the failure to transfer the signal back through the layers and thus failing to adjust the weights of the earlier layers, while the remaining layers continue to learn. Early layers that identify primitive features such as edges of an image or word pattern from text will remain unchanged from their initialization values.

The Exploding Gradient Problem

Exponential growth in the gradient values obtained during backpropagation leads to exploding gradients where the gradients grow at an exponential rate. As a result, the loss fluctuates, the weights overflow, and the training becomes NaN. In fp16 floating point precision, any value above 65,504 overflows into infinity.

Why Gradients Vanish or Explode

Gradient vanishing/exploding occurs due to multiplication of backpropagation by one factor per layer, and when many factors are multiplied that are less than 1 then their exponential shrinkage occurs, and for factors greater than 1 their exponential growth occurs.

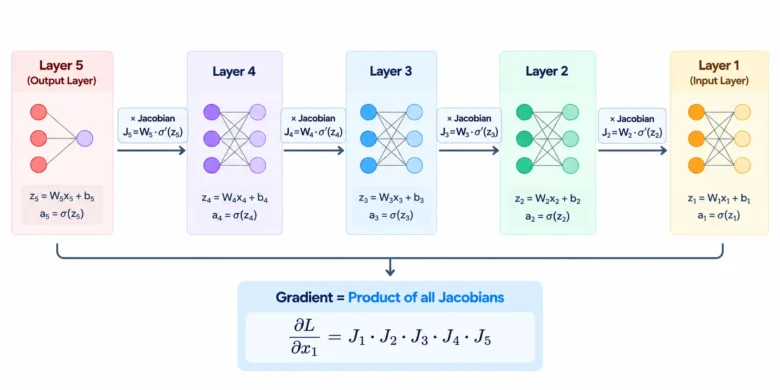

Backpropagation Multiplies One Factor Per Layer

This results in the fact that the gradient with regard to layer 1 becomes the multiplication of the derivative of each layer after layer 1. This is expressed as follows, when there are n layers:

Each term ∂aₖ/∂aₖ₋₁ is a Jacobian matrix. It contains the layer’s weights multiplied by the activation function’s derivative. The size of that Jacobian decides whether the signal shrinks or grows at that layer.

What 20 Layers Do to a Gradient

With a per-layer factor of 0.25, a gradient gets reduced to 9.1 x 10⁻¹³ with 20 layers, whereas a factor of 1.5 increases it by 3,325. The table that follows makes use of 0.25 since it represents the largest derivative of the sigmoid.

Layers	0.25ⁿ (sigmoid ceiling)	1.5ⁿ (factor above 1)
5	9.8 × 10⁻⁴	7.6
10	9.5 × 10⁻⁷	57.7
20	9.1 × 10⁻¹³	3,325
50	7.9 × 10⁻³¹	6.4 × 10⁸

A 50-layer sigmoid network loses 30 orders of magnitude of gradient signal, even under the best case where every unit sits at its steepest point.

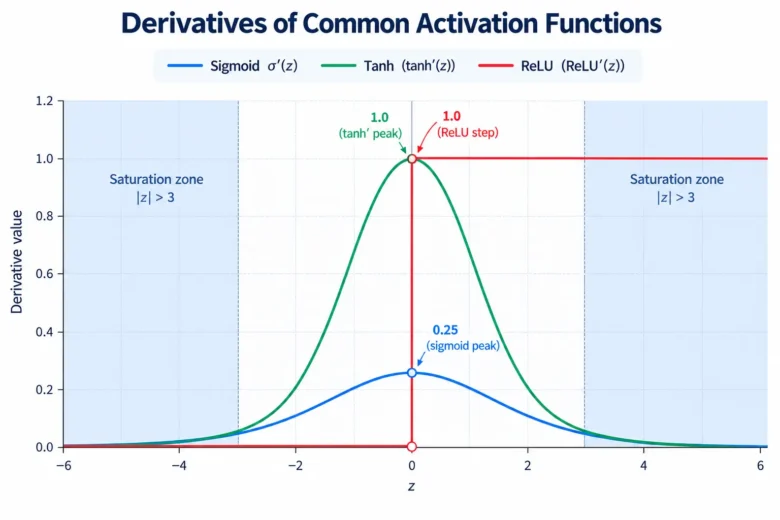

Saturating Activations: Sigmoid and Tanh

Sigmoid and Tanh functions produce vanishing gradients due to their maximum derivatives of 0.25 and 1 respectively, with their values approaching zero for larger inputs. For sigmoid, σ'(z) = σ(z)·(1−σ(z)), the derivative is maximal, being equal to 0.25 when z = 0. For z = 5, the derivative is 0.0066. The derivative of tanh can be maximal, i.e. equal to 1 only at z = 0 and falls below 0.02 at z = 3.

Glorot and Bengio showed in their 2010 AISTATS paper that sigmoid networks with standard random initialization push top hidden layers into saturation early in training.

Weight Scale and Poor Initialization

Gradient control with weight scale prevents exploding gradients – when the weight scale is too high, each layer will multiply the gradient by some number greater than one, and the result will be an exponential function of the layer depth. The weights sampled from N(0, 1) in the 64-neuron layer will have each Jacobian’s spectral scale equal to about 8.

The symmetry issue is another issue resulting from zero initialization. The gradient received by each unit within a layer is identical, hence the units remain similar. Random numbers disrupt the symmetry, although a variance equivalent to the width of the layer must be used.

Why RNNs Suffer Most

RNNs are particularly affected due to the effect of backpropagation through time, which multiplies the same weight matrix of the recurrence at each time step, meaning that a 100 time step sequence is equivalent to a 100 layer net having shared weights. According to Bengio et al., in 1994, such multiplication makes it difficult to capture long-term dependency in the sequence using gradient descent. According to Razvan Pascanu et al., in 2013 at ICML conference, the eigenvalue of the matrix determines the fate.

How to Detect Vanishing and Exploding Gradients

Identify gradient issues by monitoring the norm of the gradient of each layer throughout the training process; low values of the norms of the early layers suggest vanishing gradients, whereas large values or infinity/NaN suggest exploding gradients. The loss plot does not distinguish between the two issues.

Symptoms in the Loss Curve and Weights

A flat loss curve from the first epochs points to vanishing gradients, while sudden loss spikes and NaN values point to exploding gradients.

Signal	Vanishing	Exploding	Healthy
Loss curve	Flat plateau	Spikes, then NaN	Smooth decrease
Early-layer weights	Barely change	Change wildly	Change steadily
First/last grad-norm ratio	Below 10⁻⁴	Near 1 but huge values	0.1 to 10
Total grad norm	Near 0	Jumps 10× or more between steps	Stable band
Activations	Saturated at 0 or 1	Overflow to inf	Mixed range

The thresholds above are working heuristics from practice, not published standards.

Log Per-Layer Gradient Norms in PyTorch

Read each parameter’s .grad after loss.backward() and before optimizer.step(), then compare the first and last layer norms. The function below returns one L2 norm per weight tensor.

python
import torch

def layer_grad_norms(model):
    return {name: p.grad.norm(2).item()
            for name, p in model.named_parameters()
            if p.grad is not None and name.endswith("weight")}

loss.backward()
norms = layer_grad_norms(model)
values = list(norms.values())
print(f"first layer: {values[0]:.2e}  last layer: {values[-1]:.2e}")
print(f"first/last ratio: {values[0] / values[-1]:.2e}")
optimizer.step()
optimizer.zero_grad()

A first/last ratio below 10⁻⁴ indicates vanishing gradients. A NaN in any value indicates an overflow that must be traced to its first layer.

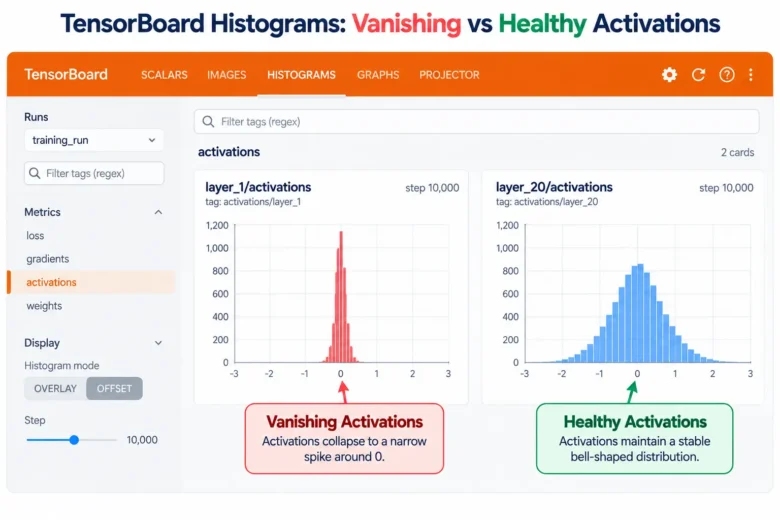

Read Gradient Histograms in TensorBoard or W&B

TensorBoard and Weights & Biases plot gradient histograms per layer over time, which shows whether distributions collapse toward zero or spread outward. In TensorBoard, call writer.add_histogram(name, p.grad, step) inside the training loop. In Weights & Biases, call wandb.watch(model, log=”gradients”, log_freq=100) once after building the model.

A vanishing layer shows a histogram that narrows into a spike at 0 over steps. An exploding layer shows tails that widen by orders of magnitude between logging points.

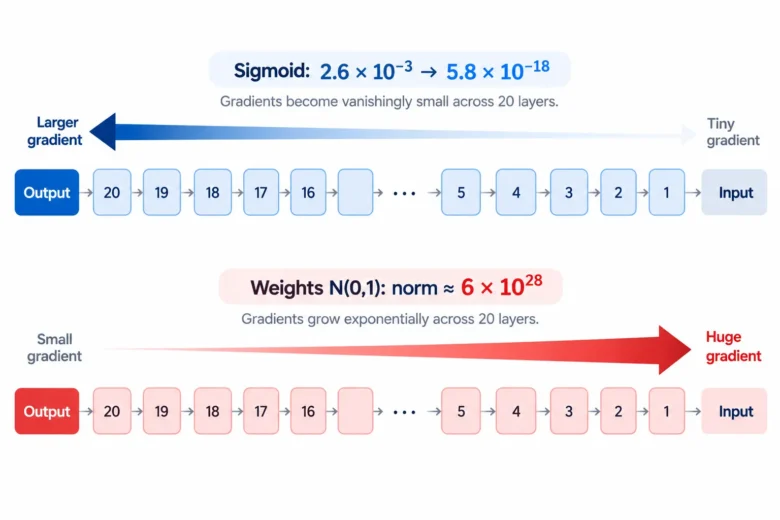

Test Results: One 20-Layer Network, Four Setups

In a controlled experiment, a 20-layer network trained using the sigmoid function provided a first layer with a gradient magnitude 4.5 × 10¹⁴ times less than the last layer, while ReLU using He initialization resulted in gradients differing in magnitude by no more than a factor of 1.3.

Test parameters: a 20-layer multilayer perceptron with 64 neurons in each layer, batch size 256, mean squared error loss, and seed 0, executed in NumPy. Numbers are layer-wise L2 norm of weight gradients after one backward pass at initialization.

Setup	Layer 1 norm	Layer 10 norm	Layer 20 norm	Layer 1 ÷ Layer 20	Result
Sigmoid + default uniform init	5.8 × 10⁻¹⁸	1.2 × 10⁻¹¹	2.6 × 10⁻³	2.2 × 10⁻¹⁵	Vanishing
Sigmoid + residual connections	0.19	0.57	1.00	0.19	Fixed
Tanh + Xavier init	0.066	0.072	0.071	0.92	Stable
ReLU + He init	0.22	0.37	0.27	0.81	Stable
ReLU + weights N(0, 1)	5.5 × 10²⁷	2.2 × 10²⁸	6.4 × 10²⁸	0.087	Exploding

There are three observations. First, residual connections fixed the gradient problem in the sigmoid network with no change in activation function. Second, tanh and relu networks remained stable if the initialization was set appropriately relative to their activation functions. Third, the N(0, 1) network gave gradients of order 10²⁸ in each layer, which would cause an immediate overflow in fp16.

The scale used for the residual connection in this experiment was 1/√20. Using unscaled residual connections with He initialization leads to norms being magnified by about 10× between layer 1 and layer 20.

How to Fix Vanishing and Exploding Gradient Problems in Deep Learning

Solve the issue of vanishing and exploding gradients in deep learning through seven techniques: use of non-saturating activation functions, initialization, residual connections, normalization, gradient clipping, gated recurrent units, and learning rate warm-up. The detection process determines which technique to apply first.

1. Use Non-Saturating Activations (ReLU, Leaky ReLU, ELU, GELU)

Use ReLU or any of its variants instead of sigmoid and tanh in hidden layers because the derivative of ReLU is 1 when inputs are positive. There is only one drawback to ReLU: when inputs are always negative, the units become zero and cease to learn. This is referred to as dying ReLU.

Activation	Derivative range	Saturates?	Dead units?	Typical use in 2026
Sigmoid	0 to 0.25	Both sides	No	Output layer for binary tasks
Tanh	0 to 1	Both sides	No	LSTM and GRU gates
ReLU	0 or 1	No, for positive inputs	Yes	CNNs, MLPs
Leaky ReLU	α or 1, often α = 0.01	No	No	GANs, deep CNNs
ELU	Above 0 to 1	Negative side only	No	Deep MLPs
GELU	Smooth, about −0.17 to 1.13	No	No	Transformers such as BERT and GPT-style models

GELU was introduced by Dan Hendrycks and Kevin Gimpel in 2016.

2. Match Initialization to the Activation (Xavier, He, LeCun)

Assign weights according to their activation function, such that Xavier weights are used with tanh and sigmoid activations, while He weights are used for ReLU and similar types, and LeCun for SELU. This method ensures that the signal variance remains consistent between layers.

Scheme	Weight variance	Pair with	Source	PyTorch call
Xavier / Glorot	2 / (fan_in + fan_out)	Tanh, sigmoid	Glorot & Bengio, 2010	nn.init.xavier_uniform_
He / Kaiming	2 / fan_in	ReLU, Leaky ReLU	He et al., 2015	nn.init.kaiming_normal_
LeCun	1 / fan_in	SELU	LeCun et al., 1998	nn.init.kaiming_normal_ with nonlinearity=”linear”

The factor of 2 in He initialization compensates for ReLU setting half of its inputs to zero.

python
import torch.nn as nn

def init_weights(module):
    if isinstance(module, nn.Linear):
        nn.init.kaiming_normal_(module.weight, nonlinearity="relu")
        nn.init.zeros_(module.bias)

model.apply(init_weights)

3. Add Residual Connections

By providing an identity mapping, y = x + F(x), residual connections solve the problem of vanishing gradients where the local derivative is given as 1 + F′(x). The researchers at Microsoft developed the concept of residual networks in 2015, when their 152-layer deep ResNet was able to win the ILSVRC 2015 image classification task. In the experiment performed here, the introduction of residual paths helped to improve the gradient first/last ratio of a sigmoid network to 0.19.

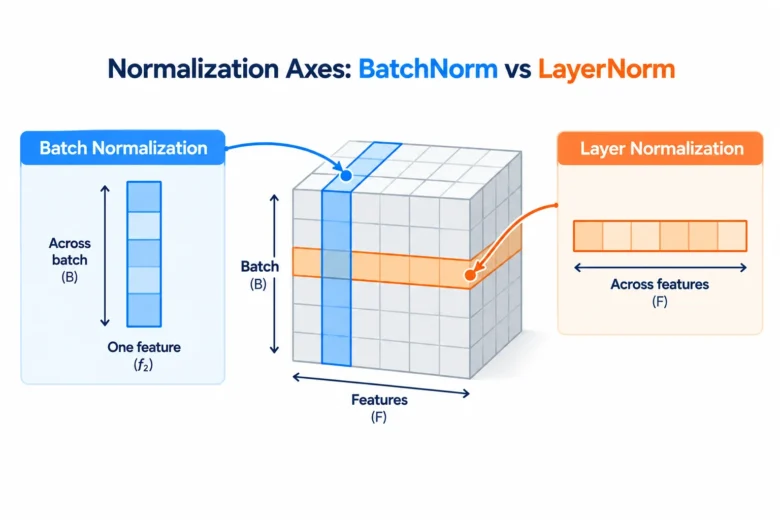

4. Normalize Layers: BatchNorm, LayerNorm, RMSNorm

Normalization layers ensure that activations have zero mean and unit variance, preventing the input from entering saturated regions while keeping the gradient magnitude constant. There are three types of normalization layers that normalize on different axes.

• Batch Normalization normalizes each feature within the batch. Sergey Ioffe and Christian Szegedy proposed it at Google in 2015. It fails for batch size 1 to 4 as batch statistics become noisy.
• Layer Normalization normalizes across features for each sample separately. Jimmy Lei Ba, Jamie Ryan Kiros, and Geoffrey Hinton introduced it in 2016. It works for all batch sizes and is useful for RNNs and transformer layers.
• RMSNorm scales using root mean square normalization alone without centering. Biao Zhang and Rico Sennrich proposed it in 2019. It is widely used in large language models as an alternative to LayerNorm.

5. Clip Gradients by Norm

Norm-based gradient clipping scales the entire gradient vector if the L2 norm of the vector is greater than a certain threshold, limiting the magnitude of the vector but preserving its direction. This approach was suggested for RNNs by Pascanu, Mikolov, and Bengio in 2013. Threshold values of 1.0 are typical defaults in training of large language models.

Unlike norm-based gradient clipping, value-based clipping sets an upper bound on each component of the vector independently, for example, from −1 to 1. Thus, it alters the direction of the gradient vector.

python
loss.backward()
total_norm = torch.nn.utils.clip_grad_norm_(model.parameters(), max_norm=1.0)
if not torch.isfinite(total_norm):
    optimizer.zero_grad()   # skip this batch
else:
    optimizer.step()
optimizer.zero_grad()

clip_grad_norm_ returns the total norm measured before clipping. Log this value on every step; a rising trend warns of instability before the loss reaches NaN.

6. Use Gated Units: LSTM and GRU

In LSTM and GRUs, there is no problem of vanishing gradient due to the additive cell state update which transfers the information and hence the gradient scaling is controlled via forget gate instead of repeated multiplication of weight matrices. The LSTM was first proposed by Sepp Hochreiter and Jürgen Schmidhuber in 1997. The forget gate was later added by Felix Gers, Jürgen Schmidhuber and Fred Cummins in 2000.

The LSTM cell state update is cₜ = fₜ ⊙ cₜ₋₁ + iₜ ⊙ c̃ₜ. When the forget gate fₜ stays near 1, the gradient passes through many time steps with little decay. LSTMs still need gradient clipping, because the gates do not prevent exploding gradients.

7. Lower the Learning Rate and Add Warmup

Warm up of the learning rate helps prevent the phenomenon of exploding gradients in the initial training steps by gradually increasing the learning rate from a low value. Adaptive optimization algorithms like Adam approximate gradient variance based on very few examples during the early training steps, making the initial updates unstable. The Transformer paper by Vaswani et al., 2017, suggested using 4,000 warm-up steps. Facebook AI Research, Goyal et al., trained ResNet-50 with a batch size of 8,192 using 5-epoch warm-up, 2017.

Which Fix to Use for MLPs, CNNs, RNNs, and Transformers

Firstly, it depends on the architecture: ReLU with He initialization for MLPs, residual connections with BatchNorm for CNNs, LSTM or GRU with clipping for RNNs, and Pre-LN with warmup and clipping for transformers.

Architecture	Most likely problem	Fix first	Add next	Avoid
Deep MLP	Vanishing	ReLU + He init	BatchNorm or LayerNorm	Sigmoid in hidden layers
CNN	Vanishing past about 20 layers	Residual connections	BatchNorm	Xavier init with ReLU
RNN	Both	LSTM or GRU	Norm clipping at 1–5	Long vanilla-RNN sequences
Transformer	Exploding, loss spikes	Pre-LN or RMSNorm	Warmup + clipping at 1.0	Post-LN at large depth without warmup
Any, small batch	Unstable statistics	LayerNorm or GroupNorm	Gradient clipping	BatchNorm at batch size 1–4

Vanishing and Exploding Gradients in 2026 Model Training

In large model training by 2026, exploding gradients remain a problem in the form of loss spikes and numeric overflow, although residual streams and normalization have largely eliminated vanishing gradients in common network designs.

Pre-LN Transformers and the Residual Stream

In the Pre-LN transformer, layer normalization occurs prior to each attention and feed-forward module, allowing for a clean residual connection and stable training without the need for warmup. In their ICML 2020 paper, Ruibin Xiong et al. prove that the original Post-LN architecture generates massive gradients right near the output layer during initialization. The majority of LLMs released after 2020 adopt Pre-LN or Pre-RMSNorm.

Mixed Precision: bf16, fp16, and Loss Scaling

However, mixed precision training could give rise to a misconception of the vanishing or exploding gradient due to underflowing below 6 × 10⁻⁸ and overflowing above 65,504. In 2018, loss scaling was proposed by Paulius Micikevicius et al., researchers from NVIDIA and Baidu, which consists of multiplying the loss prior to backward pass to prevent the loss from being underrepresentable by FP16. With eight exponent bits, bfloat16 has the same range as fp32 and hence loss scaling is not required.

Loss Spikes in Large Model Training

Loss spiking is referred to as the unexpected increase in the loss value when running large-scale models, which can be controlled through the use of gradient clipping, low learning rate, and the start from a previously saved checkpoint. As indicated in the Google PaLM report of 2022, around 20 such cases of loss spiking have been encountered during training.

A Short History of the Gradient Problem

The issue of gradients was recognized back in 1991 and has been resolved step-by-step during three decades through gates, initializations, normalization, and residual connections.

• 1991: Sepp Hochreiter examines vanishing gradients in his diploma thesis.
• 1994: Bengio, Simard, and Frasconi demonstrate that long dependencies are difficult to learn using gradient descent.
• 1997: The LSTM was introduced by Hochreiter and Schmidhuber.
• 2010: Glorot and Bengio introduce Xavier initialization.
• 2013: Pascanu, Mikolov, and Bengio introduce gradient clipping.
• 2015: He initialization, ResNet, and Batch Normalization were introduced.
• 2016: Layer Normalization is introduced.
• 2020: Xiong et al. examine Pre-LN transformers.

Common Mistakes When Fixing Gradient Problems

Common mistakes include incorrect initialization, usage of BatchNorm for small batches, value clipping where it should have been norm clipping, and clipping that conceals a data problem. Here, each of these mistakes comes with a clear fix.

1. Using Xavier Initialization with ReLU activation. Variance from Xavier is approximately half of that required by ReLU, resulting in diminishing signals when network depth increases. Use He Initialization.
2. Using BatchNorm with batch size between 1 and 4. Batch statistics become noisy. Use LayerNorm or GroupNorm.
3. Using value clipping for exploding gradients. It changes the gradient direction. Use clip_grad_norm_.
4. Clipping without checking inputs. A NaN in the input data produces NaN gradients that clipping cannot fix. Run torch.isnan(batch).any() on suspect batches.
5. Setting a high learning rate with ReLU. Large updates push units into permanently negative inputs, which kills them. Lower the rate or add warmup.
6. Reading only the loss curve. A flat loss can come from a bad learning rate or wrong labels. Confirm with per-layer gradient norms.

• Log first and last layer gradient norms every 100 steps
• Log total gradient norm every step
• Confirm the initialization scheme matches the activation
• Use norm clipping for RNNs and transformers
• Use bf16 or loss scaling for mixed precision
• Check input batches for NaN when loss turns NaN
