Forward and Backward Chaining in AI

Choose the incorrect direction for inference, and you will cause your AI system to check thousands of rules it didn’t have to worry about.

This is the true consequence of misusing forward and backward chaining – inefficient computing, sluggishness, and an inability to justify decisions.

Despite employing the same rules and data, both techniques yield entirely distinct systems when applied in reverse order. Find out how to distinguish between them in our guide.

What Is an Inference Engine?

An inference engine is the reasoning part of rule-based AI systems.

You give it two things: a knowledge base (if-then rules) and the facts. The inference engine determines what can be concluded from that.

There are two ways of running an inference engine, which include forward chaining and backward chaining. The only thing that differs between the two is the way reasoning is done.

Forward Chaining — Starting From What You Know

What Is Forward Chaining?

Forward Chaining is a data-driven inference method in which you use known facts, infer new facts using rules, repeat the process, and keep going until you reach the final solution or there are no further rules to apply.

Direction: facts → rules → new facts → conclusion.

How It Works — Step by Step

1. Store all facts that are known in working memory
2. Search for the rules that completely match the facts stored in working memory
3. Execute the rule; store the resulting fact in working memory
4. Keep repeating till there are no further rules to execute or the final goal is achieved

An interesting thing that you should know is that if you have many rules to apply, step 2 becomes time-consuming. You can overcome this issue by using the Rete Algorithm, which caches partial matches for rules.

A Worked Example — Traced Step by Step

Rules in the knowledge base:

• Rule 1: IF fever AND rash → suspect measles
• Rule 2: IF fever AND cough → suspect flu
• Rule 3: IF suspect measles → order blood test

Starting facts: fever, rash

Step	Working Memory	Rule Fired	New Fact Added
1	fever, rash	Rule 1	suspect measles
2	fever, rash, suspect measles	Rule 3	order blood test
3	fever, rash, suspect measles, order blood test	None	— Done —

The process came to the point of “order blood test” even though it wasn’t instructed to do so. The process led it there based on the information provided.

It is the power of forward chaining, which allows it to be very effective in situations where something needs to be discovered.

Real Tools That Use Forward Chaining

CLIPS – The C Language Integrated Production System – is founded on the Rete Algorithm. Its heritage spans decades of usage in embedded and aerospace computing applications; however, current initiatives now lean toward other actively supported options.

Drools (Red Hat) offers enterprise-grade forward chaining for regulatory compliance and business rules.

experta is a forward-chaining rule engine implemented in Python, allowing users to implement forward chaining without the need to learn a new language; however, its level of maintenance appears to have waned recently – be sure it meets your project’s needs.

Here is a simple rule from experta, just for context:

from experta import *

class MedicalDiagnosis(KnowledgeEngine):

    @Rule(Fact(symptom='fever'), Fact(symptom='rash'))

    def suspect_measles(self):

        self.declare(Fact(diagnosis='measles'))

        print("Suspecting measles — fever + rash match")

The engine scans @Rule decorators against working memory. Conditions match → function fires. Every step is traceable.

Backward Chaining – Starting From What You Want to Prove

What Is Backward Chaining?

Backward chaining is an approach to inference driven by the goal. You provide the specific goal and work backwards from it, identifying rules and conditions which lead to its truth.

Direction: goal → find supporting rules → check conditions as sub-goals → base facts.

How It Works — Step by Step

1. State goal (the claim to be proven)
2. Identify rules which conclude the goal
3. Test whether all the conditions in each applicable rule are true
4. If one is false, make it a new goal (sub-goal) and recursively search
5. The search continues until there are base facts to verify the inference or until all lines of inquiry are exhausted

This process involves depth-first search down the tree of rules; pursuing one path until exhausted before pursuing another. The purpose here is precisely to reduce search time by ignoring all irrelevant rules.

A practical problem is the possibility of circularity among the rules. This is not a hypothetical concern; it is a practical flaw in implementations of backward chaining.

A Worked Example – Traced Step by Step

Same rules as before. Different starting points.

Goal: Is this patient infected by the flu?

Step 1: Find rules with conclusion “flu” → Rule 2 (fever AND cough → flu)

Step 2: Check antecedents of the rule

• Fever: In the working memory ✓
• Cough: Not in working memory ✗

Step 3: Can we prove “cough”? No rule proves “cough” as a conclusion. It is an atomic fact, not in working memory.

Result: Goal not achieved. The patient does not suffer from the flu.

Note how in this case we did not consider any other rules. Rule 1 about measles and Rule 3 about blood tests were not even considered.

This is the efficiency benefit of backward reasoning. And that is why it is suitable for diagnostic applications when we know our goal already.

Real Tools That Use Backward Chaining

Prolog is the canonical example. Each query is considered a goal. The resolution approach in SWI-Prolog is known as SLD resolution and involves backward chaining based on Horn clauses.

The MYCIN program, developed in the 1970s at Stanford University, was a backward-chaining expert system that diagnosed bacterial infections and suggested possible antibiotics. It was invented by Dr. Edward Shortliffe, who proposed the hypothesis as an initial goal and then backward-chained from observed symptoms to prove or disprove it. MYCIN became the ultimate proof of the capabilities of expert systems.

Legal reasoning engines and fraud detection systems also lean toward backward chaining — they’re trying to prove or disprove a specific claim, not scan every available rule.

Forward vs. Backward Chaining – Side-by-Side

Feature	Forward Chaining	Backward Chaining
Direction	Facts → Conclusion	Goal → Facts
Search type	Breadth-first	Depth-first
Starting point	Known data	Defined goal
Best when	Goal is unknown or multiple	Goal is specific
Memory use	Higher (all facts loaded)	Lower (only relevant sub-goals)
Main risk	Explores irrelevant rules	Can loop without guards
Example tools	CLIPS, Drools, experta	Prolog, MYCIN-style systems
Common use cases	Monitoring, alerts, recommendations	Diagnosis, query answering, compliance checks

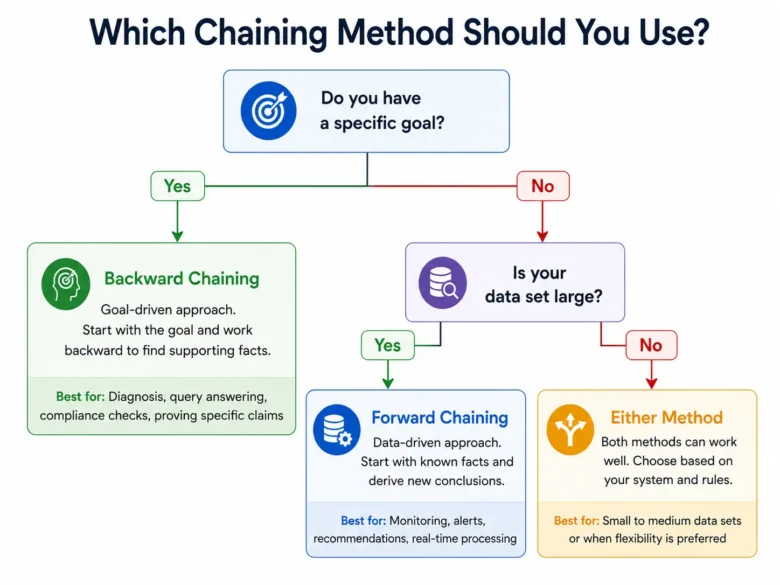

How to Choose – A Decision Framework

Here’s the part every other article skips. You’ve read the definitions. Now here’s the actual decision:

Use forward chaining when:

• There are many inputs, but you do not know ahead of time which outputs are relevant.
• You need to spot any possible outcome, whether it is fraud detection, healthcare monitoring, or recommendation engines.
• There can be multiple objectives at the same time.

Use backward chaining when:

• You have only one question to ask: “Is this compliant?” “Is this patient suffering from condition X?”
• There is very little data — you cannot fire every rule
• The system needs to explain itself (explainability is essential)

Use both when:

• The inference mechanism of your system requires forward chaining and backward chaining.
• Drools addresses the above requirement with forward chaining using its backward reasoning facility, but both are not completely symmetrical.

Do These Techniques Still Matter in 2026?

I think most people get this wrong.

The general idea is that neural networks and LLMs are rendering rule-based approaches obsolete. This is a misunderstanding.

LLMs are inherently probabilistic and cannot provide you with information about how they reached the conclusions. They cannot tell you which rules they followed, in what order, and on what data points. Rule-based systems using explicit forward/backward chaining can do all that. Each reasoning process is recorded and audited.

When working in industries with regulations, such as healthcare compliance, financial risk, legal tech, and others, simply asserting that the model has come up with this conclusion will not suffice. Explainability clauses of the EU AI Act, with deadlines for implementing the necessary features in 2025 and 2026, make this quite clear.

That’s why there’s production-level adoption of forward and backward chaining methods along with LLMs in place right now, not in place of.

The limitations of any AI product are more important than its capabilities. Understanding under which circumstances rule-based approaches surpass neural networks is half the battle won.

Quick Code Reference — Forward Chaining in Python

from experta import *

class NetworkMonitor(KnowledgeEngine):

    # Rule 1: High CPU + memory spike → suspect overload

    @Rule(Fact(cpu='high'), Fact(memory='spike'))

    def suspect_overload(self):

        self.declare(Fact(issue='server_overload'))

    # Rule 2: Server overload → trigger alert

    @Rule(Fact(issue='server_overload'))

    def trigger_alert(self):

        print("ALERT: Server overload detected — escalating")

engine = NetworkMonitor()

engine.reset()

engine.declare(Fact(cpu='high'), Fact(memory='spike'))

engine.run()

# Output: ALERT: Server overload detected — escalating

Two rules. Two facts. One alert — automatically derived. No goal specified up front; the system found it.

Frequently Asked Questions

Conclusion

Forward-chaining responds to: “Given what I know, what can I conclude?”

Backward-chaining responds: “Given what I want to prove, what facts do I need?”

Make sure you understand the difference, and then deciding which approach to take will be relatively easy. Where the challenge lies is in understanding when an approach using rule-based inference is superior to a probabilistic one altogether. Everything does not require an LLM; sometimes we need a trail.
