Fuzzy Logic

For sixty years, the word “fuzzy” had a bad influence on fuzzy logic.

People usually associate the word with approximation and uncertainty. However, nothing could be further from the truth. All the computations performed by a fuzzy system are precise. The only thing that is ambiguous is the environment within which the system should operate and solve its tasks.

In 1965, the scientist Lotfi Zadeh at the University of California, Berkeley, faced a certain problem. There was no way to teach computers how to perceive a natural language. Some words could not correspond to anything definite. For example, how would you assign a value to a temperature or a height? An individual standing at 5’10” is somewhat tall. 72°F may be said to be kind of warm. Neither fits neatly in a binary bucket.

Therefore, Zadeh suggested a new concept of a set that could contain members with different degrees of membership. For instance, there were no clear boundaries between hotness and coldness; thus, a specific temperature might be both 0.4 and 0.7 hot.

That single idea became the foundation of fuzzy logic.

Fuzzy Logic vs. Probability – The Distinction That Actually Matters

Probability states: “There is a 70% probability this patient suffers from the flu.” This means that under similar conditions, flu will be the correct diagnosis 70% of the time.

Fuzzy logic states: “Symptoms presented by this patient have a 0.7 membership in the category ‘flu.'” That is, this case has a degree of similarity to the given category.

The first statement relates to events and frequency, while the second is concerned with category membership.

Consider temperature once more. Can we say that 72 degrees is “hot”? Probability cannot say anything definitive; either it qualifies, or it does not. Fuzzy logic, however, gives a precise and simultaneous answer: it has 0.1 degree of membership in “hot,” and 0.7 degree of membership in “warm.”

Which tool should you use? Short answer: use fuzzy logic where uncertainty stems from vagueness of categories, and probability where uncertainty stems from lack of knowledge of events.

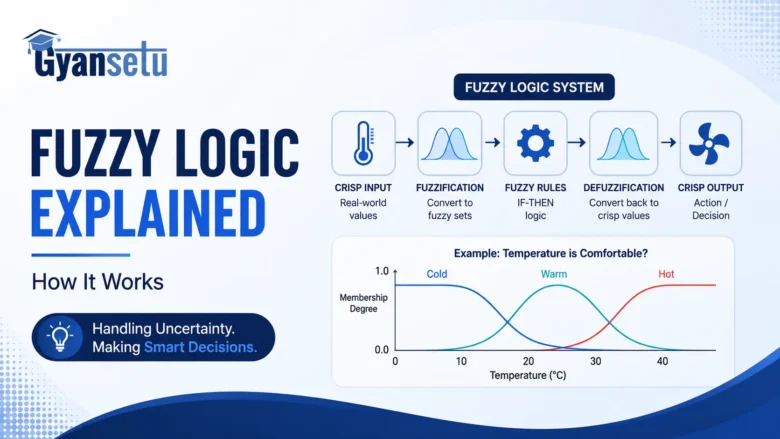

How Fuzzy Logic Works — The Four-Step Process

There are four tasks that are common to all Fuzzy Logic systems. For the purpose of this essay, I will use the same example throughout — temperature-regulated fan.

Input: Temperature is 32 degrees centigrade. Output: Fan Motor Speed.

Step 1 — Fuzzification

You begin with a clean numerical value from the sensor. Through the process of fuzzification, the crisp number is converted into membership functions belonging to particular fuzzy sets.

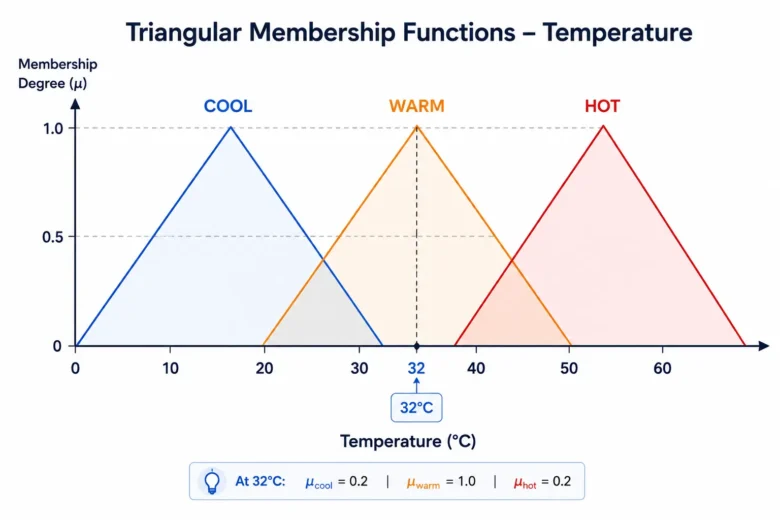

For instance, you have already determined that you will be working with three fuzzy sets regarding temperature: cool, warm, and hot. Each of the three fuzzy sets has been defined by a triangular membership function – only three points on a graph.

For example, at 32°C, we obtain the following membership functions:

• Membership in “Warm”: 0.8
• Membership in “Hot”: 0.2

Therefore, the value of temperature belongs predominantly to the warm category but contains some membership of the hot category.

Step 2 — The Rule Base

IF temperature is warm THEN fan speed is medium IF temperature is hot THEN fan speed is high

Ebrahim Mamdani from Queen Mary University of London did just this in 1974 when he built the very first practical fuzzy controller for controlling a steam engine. And yes, it worked. And that’s how industrial control is done today.

The rules can be audited. You can look at each rule. A regulator can look at every rule. You can change one rule without changing anything else. Try that with a neural network.

Step 3 — Inference Engine

The engine determines which rule fires and how strongly it does so.

It is 0.8 warm → Rule: IF warm then medium fan with strength 0.8 It is 0.2 degrees hot → Rule: IF hot THEN high fan with strength 0.2

Two rules fire simultaneously. Two rules influence the output. The engine unites them to form one fuzzy output region for medium-to-high fan speed.

Step 4 — Defuzzification

One number is required to run the motor. Defuzzification takes the fuzzy region and turns it into a crisp figure.

The classical approach involves calculating the centroid, which is a weighted average. Assume the medium fan is 50, while the high fan equals 80.

Output = (0.8 × 50 + 0.2 × 80) / (0.8 + 0.2) = 56% fan speed

Complete.

The resulting figure drives the motor. From fuzzification through rule application and inference to defuzzification, the entire process takes only milliseconds to complete. That is why it can be found in consumer-grade washing machines since the early ’90s, where it operates silently.

Fuzzy Logic vs. Machine Learning — When to Use Which

Fuzzy Logic is framed as a legacy technology that machine learning has mostly suppressed. While fuzzy logic and ML don’t compete, rather they solve different problems.

Factor	Fuzzy Logic Wins	ML Wins
Training data	Scarce or unavailable	Large labelled datasets exist
Interpretability	Required — regulated industries, safety-critical systems	Not required; black-box output is acceptable
Rule knowledge	Domain experts can specify the rules	Rules are unknown or too complex to write
Speed	Real-time embedded systems, fast control loops	Batch prediction is acceptable
Explainability	Each decision must be auditable	Prediction accuracy is the only metric that matters

Three questions check:

1. Can a subject matter expert create rules based solely on their knowledge?
2. Is each decision required to have an explanation?
3. Are labeled training datasets rare or nonexistent?

Answer yes to two or more→ fuzzy logic should be considered seriously. Three negative answers → employ machine learning without hesitation.

Where Fuzzy Logic Is Actually Used

The textbook examples — washing machines and thermostats — are real but undersell this badly. Here’s where it’s actually deployed, with enough specifics to be useful.

Industrial Control Systems

Both the temperature and chemistry of the cement kiln are regulated using fuzzy control, where failure to regulate one of these two factors results in having to scrap the whole batch. Control of pH in manufacturing plants. Optimization of heating, ventilating, and air-conditioning in big buildings. Siemens successfully marketed fuzzy process controllers up until the late 1990s.

It may surprise you that, strangely enough, such mundane uses make up the biggest practical implementation of fuzzy logic by far!

Consumer Electronics

Fuzzy washing machines produced by Matsushita (Panasonic), Hitachi, and Sharp starting in the 1990s automatically regulated the duration of the washing process, amount of water, and degree of agitation according to the size of the load and degree of water turbidity – several fuzzy variables working in affordable microprocessors. Rice cookers. Autofocus camera technology.

Automotive Systems

The technology used in automatic gear-shifts by Toyota and Nissan was fuzzy until adaptive technologies replaced it. Improvement in anti-lock brake technology. Control in suspension damping technology. These have now advanced to form neuro-fuzzy technologies but the inference scheme remains unchanged.

Medical Diagnosis Support

Fuzzy logic does not substitute but complements clinical decision-making. Symptom-based diagnosis can be considered ideal for fuzzy logic since overlapping symptoms, degrees of intensity, and non-definitive tests make symptom diagnosis ideal for applying fuzzy logic. Fuzzy logic can help in ICU patient deterioration detection.

Financial Risk and Fraud Detection

Fuzzy membership is employed in credit scoring to evaluate borrowers using a range of risk assessment rather than having to approve or reject them. The fraud detection system classifies transactions using fuzzy membership before issuing any alerts, as a transaction may score 0.7 in the “suspicious” subset and not be automatically rejected.

ANFIS — What Happens When Fuzzy Logic Learns

Real problem with conventional fuzzy logic: somebody needs to code rules for the system. If there’s nobody who’s a competent enough expert, or nobody knows what the best membership functions would be, it won’t work.

ANFIS is a solution.

Adaptive-Network-based Fuzzy Inference System, invented by Jyh-Shing Roger Jang after completing his PhD program at UC Berkeley in 1993, learns membership functions and rules using back-propagation through a neural network. The output is a structure resembling that of a fuzzy logic system, but with the membership functions and rules derived from input data, not written down by anybody.

Here, the question whether fuzzy logic is obsolete or not can be answered. Fuzzy logic is not obsolete; rather, it developed. ANFIS and other neuro-fuzzy hybrids are at the intersection point between interpretable rule-based models and machine learning techniques; this point is where regulated industries have been forced to go in 2026.

ANFIS implementations today range from energy demand predictions to decision-making layers for self-driving vehicles and medical signal classifications.

How to Start Implementing Fuzzy Logic

A good place to begin would be with Python. There is a library named scikit-fuzzy that is open source and uses NumPy to cover membership function definition, rule-based inference, and defuzzification out of the box.

import numpy as np

import skfuzzy as fuzz

# Define the input universe and a triangular membership function

temperature = np.arange(0, 51, 1)

warm = fuzz.trimf(temperature, [20, 30, 40])

# Membership value at 32°C

print(fuzz.interp_membership(temperature, warm, 32))

# Output: 0.8

Fuzzification is achieved using five lines.

MATLAB’s Fuzzy Logic Toolbox is still the industrial standard. It has a better graphical user interface and Simulink support compared to MATLAB FIS Editor.

The R programming language has its own fuzzy logic toolkit in the form of FuzzyR or frbs packages.

The Honest Trade-Off

Every advantage has a boundary. Here’s where fuzzy logic wins — and where it stops winning.

Trade-Off	When Fuzzy Logic Wins	When It Doesn’t
Interpretability	Regulated industries, safety-critical systems	Rule sets grow large enough that no human audits them meaningfully
No training data needed	Expert-designed systems, new problem domains	Abundant labelled data exists — ML will outperform on accuracy
Real-time speed	Embedded systems, fast control loops	Computationally heavy multi-variable problems
Handles vague categories	Natural language, medical symptoms, quality ratings	Uncertainty is probabilistic — use Bayesian methods instead

When Not to Use Fuzzy Logic

Avoid fuzzy logic if:

• There is abundant labelled training data. ML algorithms would be the superior choice.
• The problem has a well-defined mathematical representation. It is best solved using classical control theories.
• There is no domain expert who could define any sensible membership functions.
• Probabilistic output values are desired. This belongs to Bayesian approaches, not fuzzy logic.

Fuzzy logic is a powerful but specialized tool. Treat it as an approximate solution for all types of problems and you will get something inferior to look-up tables.
